Tesla's Powerwall - Not Economical

Posted on by
Reply

Tesla Powerwall

I'm gonna open by saying that I really like Tesla's powerpack. Technology isn't pushed past the bleeding edge without loss-leaders pioneering. That being said, the numbers, as usual, don't lie. On a per-unit-energy cost basis, these things aren't economic in most of the US. Once you consider the externalities, however, the overall benefit does make them "profitable." Likely you will see subsidies to internalize these externalities, thus making the powerpack work.

Unless the inverter costs too much. More on that later.

One major implication I haven't seen anyone talk about? Utility companies currently have to pay people with solar panels who produce excess electricity at market rates. They've been trying to get rid of this for years. This technology gives utilities every reason to demand they no longer pay people for their excess produced solar power. This has enormous implications. It's now indefensible to force utilities to buy at market rates the extra power produced by homes with solar. Read more near the bottom.

It's in my weight class!

Tesla's Powerwall next to a car. Small-ish and sleek. 7 inches deep, weighing 220 lbs

What is this Powerwall?

Powerwall is a power pack that you hang on your wall. It costs $3,000 for a 7kwh pack designed for a daily cycle, meaning it's charged and used once per day. This is the cost without installation. Also, this is the cost if you already have solar cells and an inverter. If you want to work with the grid alone, you have to buy an inverter*. Even if you already have solar cells and don't need an inverter, this seems like it's a product designed for the wealthy. Let's look at the math (my favorite part!)

*Inverters. Batteries and solar panels produce DC current, or Direct Current. This means it doesn't change phase. What we use in our homes is Alternating Current or AC. The alternating current means that the positive and negative terminals switch sides of the power plug. In the US, they switch sides 60 times per second. DC means that the terminals do not switch sides. Hence batteries having a + and - terminal, and all your non-battery electronics not having these.

The Maths!

We are going to make some of the rosiest assumptions in the world. First, though, let's get some solid data lines up. Take a peak at NPR's cost of electricity infos.

1. On average, people pay 12 cents per kwh of electricity

2. In Hawaii, they pay 33 cents. We'll use this as a case study.

3. The Northeast and California, two other case studies, pay about 16 cents.

4. The average American uses 900kwh of electricity per month in their home (from eia.gov).

Really rosy assumptions

1. The sun shines for 300 days a year and provides enough electricity to power your house during shining and to fully charge the battery

2. The electricity grid doesn't buy back your excess solar*. If they do have to buy it back, then the economics discussed here don't play out

3. You've already paid for all of your solar installation and you aren't concerned about those costs of that electricity going into this powerpack

4. These things don't degrade over time (extremely rosy assumption)

Hokay!

300 days per year of 7kwh of electricity provided by this beast is:

So 2100 kwh/year. What's that get you in most of the US?

So $252 per year. For a $3000 battery pack. In most of the US, if your solar panels worked perfectly for 300 days a year, it'd take you 12 years to pay back your investment. This is a 6% annualized ROI (Return On Investment). In other words, you'd make more money in the stock market, so it's a bad investment, not even accounting for installation costs and with impractically rosy assumptions, in most of the US.

What about in the Northeast and California, where electricity is $0.16?

Or payback in 9 years. This is an 8% ROI, making it a decent investment.

Let's be realistic, though. In the Northeast, we have storms and winter. Solar panels don't work so great here. We aren't getting 300 cycles per year out of this. We'd be lucky to get 150, making it an 18 year payback, or about a 3% ROI. What about California? They actually might get 300 days of viable sun a year. So in California, you could be break-even.

Now what's the problem here? Normal people don't look for 8% ROI on their home upgrades. They look for 15%. Pretty much they want 3-5 year payback periods. So pretty much, someone has to have a very green outlook on life to buy one of these. Or there have to be subsidies (more later)

Hawaii

Hawaii has sunshine and electricity costs 33 cents. Let's say you've paid off your solar panels in Hawaii.

In Hawaii, with our rosy assumptions and no installation cost, the powerpack will pay for itself in 4.25 years, for a whopping 18% return on investment, without any subsidies. There is a viable business model here.

Seriously, someone go start a powerpack/solar panel installation company in Hawaii.

Anywhere else, and these things will need hefty subsidies.

Subsidies

Why would you subsidize these things? Easy. There are only two reliable power sources that can compensate for variability in solar power: hydro and natural gas. Every other power plant takes far too long to spin up to be useful. In other words, nuclear power doesn't stop producing pretty much ever. Coal power takes about a day to get to capacity, so it can't cycle well.
Hydro power is a limited resource. We are pretty much tapped out in the US, and what we have is already being used, so it can't ramp. We'd have to replace what's currently being used with coal, natural gas, or nuclear to use hydro for solar-grid reliability, so that entirely defeats the point.
Natural gas ramps quickly, and we have excess capacity in the US. Natural gas still produces CO2 that spreads globally, and NO2 that spreads locally. NO2 becomes a strong acid when you breath it in, so we have healthcare reasons to reduce it. Thus it might make sense to subsidize these powerpacks to make people more likely to buy them.
Second, this is good tech. It's pretty much where it needs to be in order to make sense to buy in many parts of the country, if you already have solar. Subsidizing it will cause further advancement in battery tech, making it that much more viable in a wider array of applications. Battery tech is one of the things holding us back from so many viable technology applications, so if there is something to subsidize that will more than pay for itself, it is battery tech that is nearly cost-even now.
Some Extra Thoughts on my Rosy Assumptions
*If Solar Companies don't need to buy back Electricity
In most places, if you produce excess electricity that you don't use, the solar company has to buy it back at market rates. So buying this powerpack and storing energy for commercial purposes is useless. All of the economic discussion above is bunk if the grid needs to buy your excess power. In other words, only greenies would buy it.
One important thing to consider. This product makes storing electricity from solar into a break-even cost in any sunny part of the country. Utilities have always hated paying for this. They lose money on it. They've fought legal battles to get it repealed. And now they have the ammunition they need to repeal it, because it's now no longer a burden to consumers to store their excess electricity for later use themselves.
Maybe consider buying utility stocks if you find a company that is over-exposed to paying for home-solar-produced power? I'd tell you to look towards California here.
Inverter Costs
If you don't have solar already, you have to pay for the inverter to make this thing convert DC back to AC for your home. I can't see any reason to do this. The cost differential between peak power and non-peak is about 4-6 cents in most places. Far too little to justify the expense of both an inverter and a powerpack. A gas generator is a better bet if you need reliable power.
Large Scale Efficacy
I'm betting the large-scale systems are more cost-effective. They don't need to be as small and as sleek. And you can have one large inverter for all of the daisy-chained power packs. Who would buy these? Commercial electricity buyers, like stores.
Who wouldn't buy these? Industrial complexes. They make deals directly with electricity companies and pay $0.07 to $0.10 per kwh.
Thanks for reading!
 - Jason Munster

Electricity Basics (and some advanced)

Posted on by
Reply

I received my second request for a post! This time the submitter asks for information about electricity, transmission, and how intermittent renewables like wind and solar fit in.

So, the first question:

1. Electricity, for the most part needs needs to be consumed the instant it is produced?

Yes. Storage of electricity can be done in batteries, or with pumped-water energy storage, but these are all just ways of being able to make electricity at some moment later in time. In short, electricity, once produced, is either used immediately or stored. Massive storage is not practical at the moment, so it's used.

2. Wind or Solar electricity is essentially in addition or parallel to the base load, and do little to lessen the use of coal, NG, or nuclear derived electricity!

This bring up an interesting point about electricity production. In the US, we have 60hz electricity. It's made 60hz by the generator design (in the US, Europe and other places use 50Hz power). Thermal power plants, those that burn things to produce power, rely on spinning a turbine in a magnetic field to produce power. The magnetic field is part of the turbine design, and is too complicated for this post to discuss in further detail. The turbine is spun because water, turned into steam by the heat from burning things or other reactions (coal, natural gas, or even heat from fission), expands rapidly from water to steam. It creates pressure, and then pushes through the turbines to spin them. The turbines spin at the exact rate they need to in order to produce 60hz electricity.

If we produce slightly too much electricity, the turbines start spinning slightly faster. To keep the grid at the right speed, electricity production is reduced at plants. If there is too little electricity, the turbines will slow down, and we'll fall below 60hz. There is a constant dance of the power plants and the electricity users to make everything balance. It's mostly automated, and happens very quickly.

What does this have to do with solar and wind? A lot. Solar and wind power output can be predicted, but not perfectly. If we want to maintain a perfect 60hz grid, we need to be able to adjust for wind and solar output. Because, again, electricity is used when it is made, and not stored. Coal and nuclear power plants aren't great at changing how much electricity they produce in a short timescale, so if we are going to have power plants to make the balance necessary, we need hydro and natural gas to account for the variability of the solar and wind. There isn't enough hydro to do that all over the country.

In  other words, if we want to maintain a 60hz grid, we are always going to have some amount of natural gas power plants.

But beyond that little wrinkle, solar and wind power absolutely offset coal-fired power plants. The more solar and wind we have, the less nuclear and fossil fuel power we need, in general.

In practice, do renewables offset much? See the chart below.

US primary energy consumption. Source: eia.gov info

Short version: Wind was about 1.2% of primary energy (primary energy counts burning oil for cars as well), and solar is 0.16%. So wind and solar can replace coal and nuclear, but it barely does currently.

Longer version: We can let the 60hz grid go from exactly 60hz to let it slide between 58 and 62. And then we can fairly easily do away with a lot of other power plants, as long as we have enough wind and solar. Note, however, that there aren't enough good wind sites in the US for this, and solar is currently too expensive and resource-demanding to replace fossil fuels.

3. Electricity is bought and sold just like a commodity?

In some ways, yes, but not exactly! There is a complicated daily bidding process, and several factors are brought into play.

This one is a bit confusing. I'll do my best. Power plants bid on the day-ahead market. They submit their bids to what is typically called an ISO, for Independent System Operator (some places call it differently, like RTO for Regional Transmission Organization. The ISO/RTO looks at the bids, looks at their best guess for power the next day, and then figures out how many of the power plants they need to hire for the day. Those that don't get hired don't actually burn anything or produce power. Those that do get hired, get hired at the rate of the highest bidder. Let's do an example to explain better.

Note that a MWh is one hour of one MW production. So a 600MW plant produces 600MWh in one our, and 1800MWh in 3 hours.

A plant says, "I can produce this many megawatts at this many dollars per megawatt." Power Plant 1 might say, "I can produce 600MW of coal power at $80/MWh." Power Plant 2, "I can produce 1000MW of natural gas power at $100/MWh." Power plant 3, a nuclear power plant, doesn't shut down. They just keep running. They say, "I can produce 1200MW at $0/MWh." Why? Cause they have to run anyways. They are delivering that power at any price. Power plant 4 is an old coal-fired power plant that has already paid for itself, so it's really cheap, and says, "I can provide 300MW at $50/MWh"

Let's assume it is determined that all of the less expensive power plants, along with Power Plant 2, need to run in order to satisfy electricity demand. They want $100/MWh. Power plant 1, despite bidding in at $80 per MWh, gets $100/MWh, nuclear plant 3 also gets $100/MWh, and coal plant 4 also gets $100/MWh.

On another day, it is determined that only enough electricity is needed for power plant 4 (and all the ones who bid below it). So Power plants 1 and 2 do not produce electricity, power plants 3 and 4 each get $50/MWh.

Should inputs become more expensive, then the power plant has to raise its price. Natural gas, for example, became a lot less expensive in the past 5 years. So they now produce electricity for less than a new coal fired power plant would. So they bid in for less.

A bit confusing, right? It gets more complicated than that. This is a great example to show that electricity is not exactly treated like a commodity.

Now what about solar and wind? Pretty much, if solar and wind is produced in the US, it is purchased, pretty much outside the normal bidding system. What happens to the bidding system if all power becomes solar and wind? There probably will still be some version of it, changed to fit the new system!

That's all for now, thanks for reading!

- Jason Munster

Solar Roadways: Full of Crap and Bad at Math

Posted on by
1

First of all, sorry it has been over a month since I've posted. I've decided to get together a few people to start addressing some of the things I write about, and that has taken my time up til now. I'll be posting once per month from here on out, on the first Sunday of every month. Today's post is a long one, but one of the most interesting I've written by far.

This is the one time where I will say the following: if you are short of time, skip directly to the math section. It shows a serious glaring deficiency of either forethought or disclosure on the part of the founders of Solar Roadways. Moreover, it shows they can't do basic math. Never trust an engineer who can't do basic math. It's a very crackpot idea.

Here We Go!

I've heard a lot of talk about Solar Roadways recently. I'm going to use it as an example of how to analyze some "science." After you follow the very basic math below, you will see that the team at Solar Roadways does not know what numbers to run*. A much larger problem: they suggest that solar roads can replace fossil fuel power, while simultaneously and surreptitiously admitting that they need a ton of grid power to make this work. So pretty much they are either dumb or straight up liars.

First, let's talk about why these roads might be good, from their point of view. Being a by-the-numbers type of guy, the first thing I did was check the "numbers" section of their website. While their assumptions are dubious at best (more on that later) They say that their roads could provide 3x the energy that the US needs, in kilowatt hours (kWh is a useless measurement here, cause it will be intermittent power. In other words, it produces no energy at night, and will need to be supplemented by fossil fuel power. More on that later). Also, the roads look a lot cooler, with light-up sections, and ability to melt snow so that road maintenance is reduced.

So the thing is wired to the grid so that if it snows, it can use heating elements to melt the snow instead of plowing it. But doesn't snow take a lot of energy to melt? Would it take less energy just to push it with a plow? Time for the math!

Math of Melting vs Pushing Snow

Plow trucks to be replaced by Solar Roads? Not happening.

Plow trucks to be replaced by Solar Roads? Not happening.

Okay. Let's assume middle-case scenario of 8 inches of snowfall, being removed with one sweep by plow trucks, and that this is between powder and heavy snow in consistency, which means 1" of water equivalent. A DOT snowplow clears 10' width of snow, or 120 inches. In one foot of movement forward and plowing 8" of snow it moves the water-weight of 1"x120"x12" or

Now we have to figure out how much energy cost this took in fuel, so we will later relate this to the mileage efficiency of a DOT truck. First, let's figure out how much energy it takes to melt this much snow into water. Do do this we need the latent heat of fusion, or the energy it takes to transition from ice to snow. It's 334 Joules/gram. How do we convert from cubic inches of water to grams? Easy. Because the metric system makes sense, one of water = 1 gram. There are 2.54 cm per inch, so:

Okay, we have grams, now let's calculate the energy to melt as much snow as a plow moves from driving 1':

Or ~7.8MJ. Per foot. Or, for a mile:

to melt 8 inches of snow.

Okay, so, a plowtruck uses diesel. Each gallon of diesel has 136.6MJ. Very conservatively assuming a plowtruck gets ~5 miles to a gallon (I'm guessing it's more like 10, someone who has driven one, correct me and I will correct these #'s), it would take 27.3 MJ to plow one mile of snow. Compared to 41,184MJ to melt it. It literally takes 1500x as much energy to melt is as it would to move it.

This is what you would call a very very bad idea. Engineers as cofounders should know better than to let this slide as a potential solution.

End of Math Section

Okay, so now that we've completely dismantled the case of using these things to melt snow, lets move on to some other issues. We'll skip the minor issues, because that's just nitpicking, and move straight to the parts where they just don't know what they are talking about, and finish with things they clearly know about, but are purposefully misleading people with in order to get more money. Finally, we will close with me realizing that Nathan Fillion is a fool.

Okay, to the problems with this solar roadways project:

Dubious assumptions:

Things they don't understand: the supply lines of a very basic input.

REE mining in China is not a clean thing. Nor was it great in the US. Right now there is not enough world production to make enough of these solar roadway tiles. Look at this article to see more pictures of REE production in China.

They assume an 18.5% efficiency of the solar panels. These are panels that use Rare Earth Elements (REEs). On their FAQ, when someone asks if they are using REEs, they state (paraphrased), "Our electronics don't use silver or gold" (neither of which are REEs, so they are either changing the topic or don't know what question they are answering) "but we can use any solar cell." Good that they can use any solar cell, because there is not enough REE production in the world to produce solar at the scale they need to even replace one major highway with these. Bad they they use 18.5% as their assumed efficiency, because solar cells in this range of efficiency use REEs.

REEs are pretty much only produced in China, because producing them make a massive amount of pollution. Decades ago every other major country quit producing REEs because of the pollution they cause, and because China didn't care about pollution or health hazards, so the world was happy to let them pollute themselves and take their REEs. It's been so long since the US produced REEs that we literally don't know how. Solar Roadway's answer is "let's leave this to the government." They aren't addressing the problem at all. While other countries are looking to have their own production, it will take a very long time for this to come to fruition, and the production rate still won't be enough for a second-rate harvesting design (flat roads with bad optics vs. tilted panels with great optics to concentrate light perfectly).

At best, they can go with non-REE solar cells, which have about an 5-10% efficiency. That means that each of their hexagonal panels will produce half the power anticipated, and thus will make half as much money toward recuperating their costs. In other words, these non-REE solar panels need more basic raw materials (in terms of roadway) per kwh produced, and thus will cost more per unit energy, in an already material-intensive design for a solar cell. This shows that the project is lacking in any real expertise or understanding of the core problem they are trying to solve. Keep in mind that these are not dealbreakers. The team could hire an expert, or consulting, to fill in their knowledge gaps (likely the former, consultants are expensive, and they really need long-term help to bring this to fruition). Also, it doesn't negate all the other benefits of the solar roadways. Finally, non-REE solar panels are a hot topic in research. If the rest of the solar roadways tech is developed, and they are just waiting for good solar cells, it will rapidly enhance future deployment.

In short, the solar cells are a slight additional benefit to whatever holds them in this case of mass-distribution and inefficient use of cells. So if this new road itself doesn't compare favorably to asphalt, the project is sunk in the water.

Things they are just completely wrong/misleading about: melting snow, shutdown of fossil fuel, price of energy

We discussed the melting of snow. They suggest it replace snowplows. Bad idea. It's clearly not going to work, energetically speaking.

They keep talking about how 50% of US electricity use is from fossil fuels, and how these roads are going to replace it. This is so wrong that it is hard to debunk in one post. But here goes: First, only 40% of US primary energy (my link, please read it for background if you feel a bit lost, it is far briefer than this post) is for electricity. Second, only 66% electricity of this comes from fossil fuels. In other words, 26.4% of US electricity comes from fossil fuels (if we change all our transportation over to electric, these numbers will change, but that would require these roads to have induction power installed - AKA roads that provide the car with energy for driving so they don't have range issues). This is the total amount of emissions that could be replaced by solar roads in their current design.

Primary energy in the US. As detailed by the math above, only 25% of primary energy in the US can currently be replaced.



So, pretty much they are off to a bad/misleading start there. But this is nitpicking. The real issue comes in when they talk about replacing fossil fuels. First, they talk about heating the roads. This means they will have to put energy into the roads. Where will this energy come from? Power plants. So much for shutting down fossil fuel. But wait, there's more! Solar power is intermittent. It doesn't even work at night, so power plants also have to be on then. So pretty much, their idea of shutting down power plants is completely shot out of the water by these two things. Can solar roadways still be part of a larger energy solution? Well, not if they are heating roads to melt snow. That just takes far too much energy. If they scrap the melting snow idea and go to just producing energy? Yeah, it might help some. But let's get to one last funny part, the one that shows they know that they won't be shutting down fossil fuel power any time soon.

Energy storage. From their FAQ, they mention that there will be "virtual storage" in that during the day they will add power to the grid, and at night they will take power from the grid. This is double-speak to mean: during the day we will provide power that can offset coal and natural gas power plants. At night when we aren't producing, natural gas powerplants (again, my link) will fire up to power our roads (nuclear is not an option for power phasing like this, nuclear powerplants don't spin up or wind down on half-day timescales). In other words, they fully well understand that they aren't going to do away with the rest of the power grid, and that they aren't going to replace all those fossil fuel emissions. So pretty much, saying that these can replace our power grid is double-speak sales points.

The final problem? They don't understand energy distribution. Electricity is produced at about $0.03 to $0.08 per kwh at a power plant. By the time it arrives to us, we pay $0.13 to $0.25 (or $0.50 in Hawaii), because distribution costs a lot of money. Solar panels on our roofs produce power that costs about $0.15 to $0.20 cents per kwh, give or take. So the end-user cost of grid power is the same as that of house solar. But if you run that solar power through the distribution channels and add that price, suddenly you're talking $0.25 to $0.40 power. So, unless they are giving this power away for free, it's probably not gonna be a great solution.

Some Solutions

I've softened my usual tone quite a bit for this writeup, cause I don't want to be a complete naysayer of something who is trying to do something positive (sorry, I know how much you all know and love my biting sarcasm and scathing reviews).Outside of their false solution of trying to solve the energy/climate issue, this idea has some potential. On that note, rather than pointing out problems, I've come up with some great solutions.

My suggestions:

1: Nix the whole melting of snow concept to replace plow trucks. Energetically, it doesn't work. Plow trucks should still exist. Instead of replacing them, replace the salt and sand they need to spread. Make it so plowtrucks plow all but the last 1/8" of snow, then melt that (note, this is still a tremendous amount of energy, but stay with me). This will have a few benefits:

  • No more salt and sand on roads means less salt and sand damage to vehicles, making vehicles last longer
  • No more salt and sand on roads means that DOTs can save money buy not buying these things
  • ... no salt and sand runoff, which pollutes local waterways
  • ... animals that go to roadways in the spring to lick off accumulated salt won't do that, reducing traffic accidents from moose and deer, etc.

2: Get a bit more cognizant or REEs and their limitations. Don't use bad assumptions that are easy to poke holes in.

3: Stop selling people on false promises of doing away with fossil fuels. It makes the whole green movement look bad when prominent people are lying or severely misinformed.

4: Focus on the real potential of making these have inductive energy for electric cars. This could eliminate range anxiety (people fearing their electric cars will run out of energy and leave them stranded). Electric car sales will move a lot faster if people can drive from LA to SF, or between Boston/NYC/DC. The potential partnerships include every major car company that markets in the US. Also, this could reduce oil use, and drastically reduce air pollution from cars in these busy areas by further replacing combustion engines with electric ones (even if we power them with electricity from coal, a well-scrubbed coal plant produces fewer bad things than a car). Moreover, since people won't need fuel, they could be assessed a charge per mile driven instead. By whoever owns the roads. Here is your real money-maker for the roads, fellas. It will be far more lucrative than producing tiny amounts of electricity. Please get on this. It will lead to more electric car research, and more rapidly drive forward battery development, and it turns out that cars make a bunch of really bad pollution that causes harmful side effects like death.

This last bit, changing your startup's tack when a better model comes along, is important. And solar roadways needs to do that for a viable product, because their core solution faces a lot of headwinds (yay, sailing puns!) in break-even with their current model.

So, overall, these roads could be an excellent idea. The solar part, their main selling point, is BS because of cost, efficacy, and the need for gas-fired power plants to supplement them. The shutting down most fossil power plants is a lot of nonsense for the same reason. Making the environment better by reducing salt and sand use? Decent. Potentially by making most cars electric? Game-changer, but they are barely looking at that aspect right now. Probably cause they are too busy counting the piles of cash that indiegogo just threw at them (or, more likely, answering the insane number of emails that comes from this sort of campaign).

Hokay, that's my piece. Thanks for reading this long one.

- Jason Munster

Extra stuff!

Some background about Solar Roadways initial funding: They were funded by government SBIR. This stands for Small Business Innovative Research. It's for high-risk, high-reward research. In other words, this was considered high-risk from the start. They got a phase II, which means they did well. It's clear they still have issues and are still high-risk. But I'm glad someone is paying for research and innovation like this, especially because if it pays off, it could result in more jobs and more taxpayer base. That being said, they haven't received more funding or any grants to build this out further. Possibly cause it's a big, crazy idea. Elon Musk can pull off big, crazy ideas, because he is a brilliant manager and has a very strong personality. These guys are going to need some bigger guns on their team if they are going to make something of this project.

Second, Nathan Fillion is a bit of a fool. In touting Solar Roadways, he displays why pop culture heroes shouldn't get involved in matters outside their field of expertise (mainly, looking good in front of a camera, and pretending to be someone who they aren't in front of a camera). His adoration of something he doesn't understand falls deep within the territory of religious fervor. Nerds: just cause one of your heroes likes something doesn't mean it actually is plausible.

One final-final note: I know that this post is 3x longer than my rest. I assure you, it's far shorter than I wanted it to be. I don't believe in two-part posts very often, though. If you have read this far. please leave a comment so I can appreciate you forever 🙂

*Engineers who don't know what numbers to run are a bad investment. For my own company, all business types are skeptical of how much I know (or want to take advantage of me fully) until they find out that I used to be in finance and have a really good idea of the big picture of most things. In short, this company has a lot of potential once they take on broader experts.

Your Power Plant Might Have a Drinking Problem

Posted on by
1

While at an energy conference (ARPA-E, 2014) I found out that power plants account for 40% of water draw in the US. Simply put, they use a lot of water. The good news is that it doesn't have to be fresh water. Brayton Point, for instance, uses grey water. In other words, it uses water that came from your toilets and sinks that has been reprocessed. Others use saline water from oceans (all water in the oceans is saline, cause it is salt water).

No math this time, just review the math from my thermal power plants post.

Why do power plans needs water? Cooling purposes. The way a turbine works is that high-pressure air has to drive through it. The way this happens is water is flashed to steam. Steam takes 1600x the space at 1 atmosphere compared to water. So it creates a massive pressure differential on one side of the turbine, turning the fans, turning the turbine, and generating electricity. The steam needs to be cooled on the other side to either create the vacuum that drives the pressure differential to turn the turbine, or, if it's a close cycle and the same water is used, to cool the steam back to water. It needs to be water again, otherwise it cannot expand and drive the turbine.

Schematic of a thermal power plant. It needs water to cool the water used to drive the turbine.

Okay. That was complicated. Let's break it down further. This section if very detailed, and most of you will want to skip this paragraph. Here goes: There are two major ways to run a thermal power plant. Combined cycle, and single cycle. Combined cycle is more efficient. How? It uses several turbines to extract energy rather than a single one. Think about it this way: when you have 300 degree celcius steam coming from the coal-burning reactor, it is all steam. There is no water-phase droplets in it. This is called dry steam. It can be directed to special high-efficiency turbines that can extract a lot of energy. The steam then loses pressure and temperature, and some water droplets begin to form. If this mix of steam and water were directed at the same turbine, it would pit and tear at the turbine blades, destroying it. Two things could be done with this steam. Either it could be directed to another turbine, or it may not be reused. The second turbine will be designed differently for steam that is lower pressure and lower temperature. Having multiple turbines like this increases efficiency. Inefficient plants use only one turbine

(everyone else should join back in now) Eventually you end up with a mix of water a steam. As I said before, this has to become water again, so it can expand to steam and drive turbines. Or, if a plant is doing a once-through cycle and expanding water from a stream, it needs to dump the water back into the environment. Dumping near-boiling water into the environment is a terrible idea. That would be a bit of a disaster. So, in either case, you need a lot of water from the environment to cool the water used for the steam cycle in the plant. An alternative scenario is using evaporative cooling towers. They evaporate water, which requires heat to go into the water, which then cools other water. No matter what, cooling a plant requires a lot of water.

So here we come back to the end point. Power plants use an insane amount of water. "Ahh, but Jason," you ask, "these are just thermal power plants. I use solar power. So my plant is water-efficient!"

Not so, I say! Solar plants also use water for cooling and cleaning. And this is from NYT, an ostensibly liberal paper that likes solar. This is because major solar plants use solar thermal, rather than solar PV. Solar PV is pretty much water-free, other than for cleaning mirrors. But that electricity is too expensive to be useful at the grid scale (recall from a prior post that it costs about 3-7 cents to produce a kwh of electricity, but we buy it for 20 cents, so it makes sense for us to put solar panels on our houses at the cost of 20 cents per kwh, while it doesn't make sense for power companies to use solar panels since they mark up prices 3x to get power to us).

How does this compare to coal? In the link above, we have solar power using 1.2 billion gallons a year to produce 500mw of power. Your average coal plant produces 600 watts of power. A once-through plant draws "between 70 and 80 billion" gallons a year. But a closed-cycle plant, the one that uses the same water in the plant and only uses other water for cooling at the end of the power cycle, uses 1.7 to 4 billion gallons a year. So the efficient ones are comparable to solar in water use.

So here we have a chart showing all this:

Water use by power plant type, source

Note that you can find different graphs using different information sources, but the general point always remains: power plants use a lot of water.

Wind power, however, doesn't use water. Unfortunately, wind power is only available in a few places. How about hydro power? It passively uses water, so it doesn't really count. Great, right?

Not so fast. How much of the US power generation comes from thermal and solar sources? According to the EIA, 87%. I reproduce the info here:

In 2012, the United States generated about 4,054 billion kilowatthours of electricity.  About 68% of the electricity generated was from fossil fuel (coal, natural gas, and petroleum), with 37% attributed from coal.

Energy sources and percent share of  total electricity generation in 2012 were:

  • Coal 37%

  • Natural Gas 30%

  • Nuclear 19%

  • Hydropower 7%

  • Other Renewable 5%Petroleum 1%

    • Biomass 1.42%
    • Geothermal 0.41%
    • Solar 0.11%
    • Wind 3.46%

  • Other Gases < 1%

So yeah. Your power plant has a drinking problem.

thanks for reading!

- Jason Munster

Is Nuclear Power Really the Most Expensive Technology?

Posted on by
Reply

No. It isn't.

Let's explore this more. In a country that already has a well-developed electrical grid / electricity distribution system (sorry, much of Africa), doesn't have ideas based on fear about how dangerous nuclear power is (European and North American countries, +Japan), and doesn't have a terrorism issue (proliferation), nuclear power is the cheapest and least polluting type.

Okay, so where can we find a country that meets this description? How bout Croatia, where some scientists did some probabilistic modeling on this?

From the results of the simulations it can be concluded that the distribution of levelized bus bar costs for the combined cycle gas plant is in the range 4.5–8 US cents/kWh, with a most probable value of about 5.8 US cents/kWh; for coal-fired plants the corresponding values are 4.5–6.3 US cents/kWh and 5.2 US cents/kWh and for the nuclear power plant the corresponding values are in the range 4.2–5.8 US cents/kWh and a most probable value of about 4.8 US cents/kWh.

Let me sum this up. In Croatia, nuclear power is likely going to be the cheapest source. Plus is doesn't pollute and kill people like gas or coal.

Admit it, you needed this.

Why do we face a different situation in the US and Europe? Easy. I've mentioned it before. There is so much concern about the safety of nuclear power that each construction gets mired in legal battles. The legal battles themselves don't cost much. What costs a ton is that these power plants took out $8 billion in loans, meant to be paid back over 10 years. Those loans accrue interest. If legal hurtles slow the construction of the plant down and it takes 15 years instead, those extra 5 years of loans are gonna have several extra billions in interest to pay. Suddenly the cost of power produced goes up.

These costs need to be paid back. The only way to pay back higher than anticipated costs would be to charge more for nuclear power.

So it's safe to say that stalling the construction of a nuclear power plant can effectively prevent it from ever getting built. Now we are in a situation where no one wants to fund a power plant, because the chance of it being slowed and made unprofitable is a bit higher.

Sometimes there are just plain time overruns. The US hasn't build nuclear power plants in years. Our companies barely know how to do it. Our people haven't been trained in colleges and universities to build nuclear power plants. We just don't have the nuclear engineers we would need to make a nuclear renaissance happen, and we'd need several nuclear power plants built before we finally get the hang of it. So there will be a learning curve. Would you want to fund that learning curve? Probably not when natural gas is so cheap in the US.

Are we gonna get there any time soon? Not without a major policy shift. Let's look at planned nuclear power plants worldwide:

Planned nuclear power plants. Image mine, constructed from data available at

Planned nuclear power plants. Image mine, constructed from data available  here

So um... Good job, China. US? Not so much. 32 of the 72 nuclear power plants scheduled to come on-line in the next 5 years are in China. 4 are in the US.

Nuclear power will be more expensive than gas (and coal) power in the US unless 3 things happen:

1. We account for the annual loss of life and increase in asthma and heart disease associated with gas power plants.

2. We start building nuclear power plants now, training a cadre of engineers and speciality construction personnel to finish power plants quickly, safely, properly, and on time (the first few will be finished slowly, behind schedule, but still safe and properly complete, cause lots of eyes will be on them)

3. We continue to build enough of them so that the future ones are build on time and for less expense, driving down the cost of nuclear power to competitive levels (especially when accounting for the external costs of pollution and CO2 from gas and coal).

Thanks for reading!

- Jason Munster



Nuclear Power: Savings lives

Posted on by
Reply

Nuclear power has saved over 1.8 million lives by replacing fossil fuel power sources.

A nuclear power plant!

I've mentioned that fossil fuel power plants kill people and shorten lives by emitting not only particulate matter and smog normally associated with pollution, but also NOx (natural gas power plants produce almost no particulate matter, but any time anything is combusted, the combustion process in a nitrogen rich atmosphere (78% on Earth) produces NOx, so natural gas power plants do produce NOx).

Coal fired power plants, even clean ones, belch yuckies into the air.

Shortly after harping on exactly this for several posts, a journal article came out that exonerated my aggressive stance on how nuclear power saves lives rather than ending them through nuclear disasters. Nuclear power has saved over 1.8 million lives, according to this peer-reviewed research. The authors didn't include long-term health ailments and non-death causing heart attacks related to climate change. Only death: full stop. They go on to say that replacing nuclear power with natural gas would cause 400,000 deaths by 2050. Replacing them with coal would cause 7 million. Meanwhile, the best estimates of long-term deaths caused by radiation exposure from the Chernobyl meltdown, mining uranium, and building nuclear power plants stands at about 5,000 No deaths arose from Three Mile Island or Fukushima. What about the radiation that Fukushima is spilling out into the ocean? It's less than 1/20th the radiation levels found in a banana.

I am a banana. Eating one of me makes you ingest more radiation than Fukushima ever will.

I am a banana. Eating one of me makes you ingest more radiation than Fukushima ever will.

Critics are quick to point out that renewables like wind are cheaper and more effective at reducing CO2 emissions than nuclear. Great. Let's build more wind power. Except that there are not sufficiently good places to make wind effectively and cheaply. In an exhaustive (and depressing) article on the state of nuclear energy construction, it is pointed out that Germany has an installed capacity (recall, installed capacity is simply the name-plate power generation of a plant/turbine at best-case scenario) of 76GW of renewable energy. They then compared this to all of France's installed capacity of Nuclear at 63.1 GW. But, as we have talked about, renewables don't always work. While France's nuclear generators put out 407 TWh in 2012, Germany's renewables generated 136 TWh despite their larger capacity.

"Except like Jason's former manager at JPMorgan, I only work under ideal conditions!"

"Except like Jason's former manager at JPMorgan, I only work under ideal conditions!"

Moreover, Germany pledged to phase out nuclear power after Fukushima. What did they replace it with? Not renewables. Coal fired power plants. Meanwhile, as the US expands power generation from natural gas and ceased buying coal from the US, US coal producers are finding a new market for coal in Germany.

So let's look at Fukushima a bit more. Several things are bad about fukushima. First, it melted down when a tsunami overtopped its protective walls. The US Nuclear Regulatory Commission (NRC) had told Japan 20 years ago that their Fukushima walls were too low and they could be overtopped by a very realistic earthquake scenario. And now after the disaster, groundwater contamination with (less than 1/20th of a banana's levels) radiation is all a concern. Guess what? The NRC warned Fukushima to get their groundwater issue under control three years before the Fukushima meltdown.

That's right. The US NRC predicted that Fukushima was going to happen, and told Japan to get their house in order.

NRC: Telling Japan what to do since 1980. "We don't have much of a job to do in the US anymore since we haven't built a power plant in decades"

The US has a nuclear meltdown, too. You know what the consequences were? Pretty much nothing. It cost a billion dollar to clean up. That is a huge sum. But the meltdown was well-handled. And a lot was learned from the meltdown.

My point is, the US has it's matters sorted out when it comes to nuclear safety. And we are good at identifying risks in other parts of the world.

Finally, here's the big one, new reactor designs wouldn't allow for either three mile island or Fukushima to happen. With these new reactors, in the event of mechanical failure of the passive systems, the worst case scenario of the new designs is that it would take 3 full days before even needing to worry about meltdown beginning, leaving plenty of time to deal with the situation.

So yes. There are risks with nuclear. But there are guaranteed deaths with coal and natural gas.

The best solution by far is avoiding building new power plants and to massively increase efficiency and conservation. But people are slow at changing, and we aren't gonna change our lifestyles fast enough in the western world to avoid expansion of power use, and the developing world needs to build a ton of power capacity.

So let's stop being scared of nuclear power, cause it's saving lives rather than costing them.

Thanks for reading,

- Jason Munster

Appendix

Oh, but what is this section? Just a bunch of extra information. Check out how long it takes for various countries to build nuclear reactors:

What are Pakistan and India doing that they can build nukes in 5 years?!?

Average, min, and max times of nuclear plant construction for countries that have built them. Source

Hokay, so. I need to acknowledge the bad parts of nuclear power. The real ones, not the fear-mongering that happens.

First, nuclear power is more expensive than on-shore wind (which is a limited resource, there are not infinite good places to put wind farms), coal, and natural gas. There is no doubt about that. If we switched everything to nuclear, many parts of the US that don't have high electricity prices will experience a rate shock. That is, their electricity bills will rise. But hey, remember what we said earlier about efficiency and conservation being the best way to save lives and to arrest climate change? Slightly higher electricity prices would promote this conservation. The initial rate shock would be a bit of an issue, but I am betting that nuclear power's opponents overstate it.

Second, there is an alternative to nuclear that I want to acknowledge, with a caveat. Renewables can't provide baseload power. But renewables paired with load-following natural-gas fired plants can (recall from a prior article that gas turbine based power plants can spin up very fast, and no other major power plant type can) (we don't count hydro as a major power type because we can't build more hydro in the US, we are tapped [punny]). This is by far better than coal, and better than gas alone. But it still burns gas, which produces CO2 and kills people and causes asthma.

Solving the Climate Problem

Posted on by
Reply

I started this site to get practice in writing science for the general populace. I've slacked off because I am a bit bored of reaching for topics. More importantly, I've been playing rugby with HBSRFC.

So here it is. A generalized and very incomplete version of my view on climate change, who it will affect most, and what we can do about it.

CO2, The Ugly One That Won't Leave You Alone

CO2 stays in the environment for more than 40,000 years. That is longer than nuclear waste lasts. Moreover, its effects are experiences by every person on the planet. What we do now has an effect on the entire planet. Luckily, technology will probably be able to fix this eventually. We can't count on this now, though.

Energy and Climate Change, How They Relate

Climate change is caused by emissions of CO2 by energy use, methane by agriculture and other things, and a host of other very powerful chemicals that are emitted from industry.

How do we solve climate change? The answer is straightforward, but far from simple: use much less energy from sources that produce CO2. Either switch to "green" tech, or conserve. Buy less things that require all the energy to produce. Travel less, or travel in ways that produce less greenhouse gases. Make fewer babies. None of these are easily accomplished, unless you are poor and can't afford any of them. Even then, everyone is striving for a wealthier, more CO2-heavy lifestyle.

So let's assume for a second that people aren't going to change their lifestyles and conserve. We need ways to get energy without belching CO2 everywhere.

Live in Smaller Houses, Buy Less Stuff

You can't convince Americans to live in houses that are the size that Europeans live in and you can't convince them to give up their cars to take public transportation and live in cities (at least in the short term). Houses require energy to heat and cool. Smaller houses mean fewer drafts, leading to less heating and cooling needs.

How about green energy? We have reviewed those technologies. There isn't enough wind to provide sufficient wind power, and the wind isn't always blowing, so sometimes we won't have power when we want it. Hydro power is pretty much fully tapped. Tidal power is a joke in the big scheme. Solar could be an option, but it is currently far too expensive. It is not "deployable" in that with solar, you only get what the sun decides, so we will always need some backup power that can be turned on when we want. Solar doesn't work well at night, for instance. Moreover, the best places for solar are far from cities, so figuring out how to get the electricity from the countryside to the cities is a monumental task, especially in the US (even with eminent domain, getting the land to be the transmission lines through several states would be nearly impossible). So here we stand with three good reasons that solar won't solve our problem in the near future, and with the other resources insufficient. Pretty much, even if we do use solar to solve a lot of our problems, we still need some other energy source to provide baseline power.

Too small! Turn back!

What about buying less stuff? The amount of CO2 that goes into making cars, laptops, etc., is pretty big. How much stuff do you buy that you never use afterwards? Or you maybe use once a year or two? All of that, you could have rented, saved money, and saved space. Even better? The things that go into making electronics like cellphones are not easy to pull out of the ground. Tantalum in your cell phone is pretty much produced by indentured servitude in Africa. The other stuff that goes into electronics, the rare earth metals, these are not so rare. It just turns out that it is difficult to produce it without destroying the environment. The US has plenty of rare earth's the reason it is done in China is that they don't mind wrecking the environment and their workers (see bottom of that post). Yeah, we need electronics to communicate and keep things moving. We don't need a new iphone every 6 months. Those things last at least 2 years.

Energy for Transportation

This is a much larger hurtle. 35% of US energy consumption is in transportation. Transportation requires that the energy source be within the vehicle (unless you are in South Korea, where the energy source is induction and is beneath the road. Pretty badass, if you ask me). Batteries currently weigh a lot, don't have nearly as much energy per pound as gasoline, and require a long time to charge. The problem is not as bleak as it seems, however. Most driving in the US could easily be done with all-electric cars.

Your bus is ugly, but it charges while driving without producing its own CO2. Well done, South Korea.

Cars

I've also written about Electric Cars.

This is an area with a lot of potential. 120 million Americans commute to work by car. The average person lives fewer than 20 miles from work. Substantially all of them commute alone. The Nissan Leaf gets 75 miles before it needs to be recharged. The Tesla model S goes about 275 miles. No matter what the source of energy for an electric car, it produces less CO2 than a normal car. Going by the numbers available on these cars, we see that with the standard US energy mix (some renewables, lots of nuclear, a whole lot of natural gas), they produce between 33% and 50% the CO2 as a combustion engine.

Bicycles

I've written about bicycling. It's good for you, and saves the environment. Unless you eat only beef. Then you have other problems.

Power Generation: What Works

Wind power makes sense everywhere that there is a lot of wind, as long as it is onshore. Wind is pretty much going up everywhere that makes sense. It costs less than a new coal power plant, and is far cleaner.

Solar power is expensive. Is there anywhere it works well? Sure, just take a look at the electricity rates paid by different types of consumers. Commercial real-estate (stores, offices) and residential places (our homes) pay a huge premium on electricity. In most states, residents and commercial consumers pay nearly 15 cents per kwh, while industrial consumers pay closer to 7 center for a kwh. How does this stack up to costs to produce? Let's return to my favorite chart:

Table 1. Estimated levelized cost of new generation resources, 2018
U.S. average levelized costs (2011 $/megawatthour) for plants entering service in 2018
Plant type Capacity factor (%) Levelized capital cost Fixed O&M Variable O&M (including fuel) Transmission investment Total system levelized cost
Dispatchable Technologies
Conventional Coal 85 65.7 4.1 29.2 1.2 100.1
Advanced Coal 85 84.4 6.8 30.7 1.2 123.0
Advanced Coal with CCS 85 88.4 8.8 37.2 1.2 135.5
Natural Gas-fired
Conventional Combined Cycle 87 15.8 1.7 48.4 1.2 67.1
Advanced Combined Cycle 87 17.4 2.0 45.0 1.2 65.6
Advanced CC with CCS 87 34.0 4.1 54.1 1.2 93.4
Conventional Combustion Turbine 30 44.2 2.7 80.0 3.4 130.3
Advanced Combustion Turbine 30 30.4 2.6 68.2 3.4 104.6
Advanced Nuclear 90 83.4 11.6 12.3 1.1 108.4
Geothermal 92 76.2 12.0 0.0 1.4 89.6
Biomass 83 53.2 14.3 42.3 1.2 111.0
Non-Dispatchable Technologies
Wind 34 70.3 13.1 0.0 3.2 86.6
Wind-Offshore 37 193.4 22.4 0.0 5.7 221.5
Solar PV1 25 130.4 9.9 0.0 4.0 144.3
Solar Thermal 20 214.2 41.4 0.0 5.9 261.5
Hydro2 52 78.1 4.1 6.1 2.0 90.3


Solar PV costs less in sunny areas than buying from the grid, as long as you are residential or commercial. A big industrial complex gets really cheap power, so they will never use something as expensive as PV.

The Future of Solar

Even if solar power is widely deployed in the future, it doesn't work at night. A lot of people in Houston, and other places that are unlivable without modern tech, would be unhappy if they couldn't sleep in AC. We don't have massive-scale battery tech  to compensate, so we will still need baseload.

Baseload Power

There are two viable places to get baseload power. The first is nuclear power. The second is burning fossil fuels and then catching their CO2 and putting it underground.

Carbon Capture and Storage

This is a very unproven technology. We don't know if we can hold the CO2 underground forever (which is what would be necessary) or whether we can find a place for it. And there are only a few test cases for it. The numbers above are completely unreliable in terms of cost. This might be better in the future, but I would guess that it isn't viable for at least 15 years.

Another issue? You can't just start capturing CO2 emissions from any old power plant. Retrofitting the plant is expensive or impossible. Power plants are built to last 50 years. Even when we figure out carbon capture and storage, we can't easily retrofit old plants to make them work well.

Baseload?

So we need baseload. There are no green baseload sources. Making coal based powerplants green is not currently viable. Nuclear power doesn't produce much CO2, but it has nuclear waste. Nuclear waste lasts a long time. But it is the only power source that contains all its waste. It's manageable. And it decays faster than the Earth will take down CO2.

nuclear power plants are my favorite

What's the biggest problem with nuclear? I'll describe this in more detail later. The long version: it can't get financed. Short version: people are afraid of Nuclear. Cause three powerplants have blown up. Fukushima was completely preventable. The US literally told Japan twice to get their house in order, cause there was trouble.The USGS warned that the walls of Fukushima were not high enough to prevent tsunami flooding years ago. Had they followed through with the USGS recommendations, Japan would not be spewing radioactive waste into their groundwater. Moreover, the US Nuclear Regulatory Commission told Fukushima and Japan that they had a groundwater problem, and that a breach would cause widespread contamination; that if it ever melted down, it would dump nuclear waste into the ground through the water. They indicated Japan should divert the flow of the groundwater to prevent this. Still, no one died in this meltdown.

When Russia melted down a nuclear plant, it was a big mess.

When the US melted down a nuclear plant, no one was harmed and not much was released. It was just expensive to clean it.

Short version? The US is good at nuclear. Korea seems to be good at it. People shouldn't be afraid of it.

But they are. So the plants don't get financed, they don't get built, they aren't allowed to go forward.

As a result, if someone did want to finance them in the US, they would have to pay such massive interest rates that it would never pull a profit.

You know who is building them? Korea. China. Korea is also building power plants in the middle east. Other countries will follow suit. We need to get our house sorted out so our country can build power plants here and elsewhere, too.

Summing it Up

Live in smaller houses, it won't make you less happy. Buy less stuff, it also won't make you less happy. You also don't need to drive an SUV. Or drive as much as you do. Commuting sucks anyways.

Until all that happens, we still need a ton of electricity. Nuclear is probably the best way to do it for now.

That's my rant

Seriously. I'm pretty much done.

Thanks for reading all along. There might be a few more posts on this stuff.

- Jason Munster

Electric Cars

Posted on by
2

Electric Cars

Electric Cars. Are they really all they are hyped up to be? The short answer: hell yeah. These things are sweet. I want to get my hands on one right now.

Energy flows in the US.

Energy flows in the US. Transportation accounts for 28% of all energy use, primarily from burning petroleum.

35% of US energy consumption is in transportation. Transportation requires that the energy source be within the vehicle (unless you are in South Korea, where the energy source is induction and is beneath the road. Pretty badass, if you ask me). Batteries currently weigh a lot, don't have nearly as much energy per pound as gasoline, and require a long time to charge. But if we could replace a huge percent of this with more efficient electric cars, it would go a long ways towards arresting GHG emissions.

120 million Americans commute to work by car. The average person lives fewer than 20 miles from work. Substantially all of them commute alone. The Nissan Leaf gets 75 miles before it needs to be recharged. The Tesla model S goes about 275 miles. No matter what the source of energy for an electric car, it produces less CO2 than a normal car.

How does an electric car produce less CO2 than a gas one? No matter the source of the electricity, even if it is an old inefficient coal plant, the conversion efficiency of an electric car will result in lower CO2 emissions per mile than a gas powered car. The EPA estimates that the Nissan Leaf gets an estimated 125mpg using CO2 equivalent of gasoline. The recent fleet average for the US is about 30mpg for passenger cars. So electric cars emit only 25% the CO2 of your average normal car. Lets be generous and say they emit 40% the CO2 of your best gasoline powered cars.

Commuters would make a very significant difference in emissions if they changed over to electric cars.

Power

Most Americans base the acceleration needs of their car on the idea that they someday need to accelerate down on onramp to get to 65mph on the highway. The amount of power a car has is typically listed as horsepower (hp). This is a terrible measure. The real measure of power of a vehicle is Peak Torque.

Allow me to explain this concept. Roughly speaking, torque is the force going into a rotation of an object. It makes sense to use torque to describe cars, cause they have rotation parts. Think of it as the amount of energy going into the car from the tires rotating on the road.

(yes, that is a cross product) where r is the radius, or distance from the center of rotation, and F is the force. For the most part, the torque of a vehicle is entirely determined by its engine. It directly translates to how fast you can accelerate. More torque yields less time from zero to 60.

My motorcycle. Pretty, eh?

Let's compare some examples. First,  my favorite. My bike, a Kawasaki VN750, vs. a Hayabusa (fastest production bike in the world) and an electric bike from Zero Motorcycles, the Zero DS. The electric motorcycle gets up to the equivalent of 400mpg. Compare to a normal bike of around 40-50mpg.

VN750 Hayabusa DS-electric
Style Cruiser Sport Sort of cruiser
Weight 500 lbs 563 lbs 400 lbs
Torque (ft-lbs) 47 99.6
69

Before comparing, let's talk about peak torque. Peak torque is the maximum torque an engine can put out. For a gasoline engine, it is pretty much right before it redlines. So the numbers of 47 and 99.6 you see for the first two bikes means that it is the best they can do. You can think of an electric motor as pretty much always putting out peak torque. In other words, the hayabusa has to jump up to 6500rpm before it can be at full power, then it shifts up a gear, and drops back down out of its full power range. The electric bike doesn't shift gears, either.

Let's look at the Hayabusa power band to illustrate this difference.

Hayabusa power band in yellow. It is not a flat line.

As you can see, the torque output of a gas engine changes with RPM. You will notice the Kawasaki ZX-14 has more max torque, but less torque at the lower end. This is one of the main reasons the 'Busa is considered faster. It comes off the line far faster than other bikes, cause it has higher starting torque. Compare this to an electric engine, which has max torque from 0 RPMs up. You probably see my point about how sweet electric engines are.

So now we can compare electric vs gas based on torque. The electric motorcycle trounces my motorcycle all the time. In the first few moments, it will likely nearly match the Hayabusa. In fact, until the 'Busa hits 3000 RPM, the electric bike won't look too shabby. Why? First, cause it has the same torque as the 'Busa up til the Busa hits 3000rpm. Second, cause it weighs 150 lbs. less. In short, a smaller electric bike kicks butt. (note that the electric bike doesn't have super wide tires to accommodate all its power, so it might slide around a bit when you hammer down).

Where does the electric bike fall short? Range. This bad boy will only go 75 miles on the highway between charges. Funny enough, it'll go 125 in the city. This is all owed to wind resistance.  Back to the point, you can't refill this guy as easily. You need to plug it in. It takes a while to recharge. You can just fill up a motorcycle and go on your way. This bike is pretty much for commuting or visiting friends in nearby cities.

(*2017 update! New electric motorcycles are capable of going 200 miles. Then they have to recharge for a long time. But 200 miles is a long trip).

Also, let's admit it, both my bike and the 'Busa are sexier.

The cars.

Audi A5 Nissan Leaf Tesla S
Cost $38k $21.3k 62,000
MPG 22 102 90
Peak Torque 258 210 443
Weight (lbs) 3549 3354 4650
Range (miles) unlimited 75 275

As you can see, if you are commuting the Nissan leaf makes a lot more sense in every possible way. It costs less to buy than most cars, it has the acceleration potential of a high-end Audi A-5, and the range you need to get to work and back. This beast will accelerate onto the highway just fine. Also, there is the whole power band thing. These electric cars have peak torque all the time.

Overview

Electric vehicles. These puppies accelerate as fast or faster than most vehicles in their class. The shorter range ones are less expensive to buy than most cars, and the cost of making them move is lower. Oh, and they save the environment relative to normal cars.

Whats the drawback? Range anxiety: the other event people think of when they don't want an electric car. Visiting Grandma. People want to buy one vehicle that can do everything they want. There is also the concern of "what if I am in an emergency and really need a car that can drive far right away?!?" How many times has that happened to you in your life? For me, the answer is 0. Any family emergency I had, I took a plane or a bus to.

Most families still own two cars. At least one should be electric. Here's an idea: get one gasoline car to visit grandma when you need, and then get an electric for your commute. Here's another idea: get an electric car or two, and rent a car when you need to go visit Grandma. You will save money either way.

The ridiculousness that is trucks and SUVs? Get a subaru with a roof rack, and rent the trucks and SUVs otherwise. Why the heck are you in a vehicle getting 12 miles to the gallon when gas is expensive, and when burning that gas helps wreck the environment? You, person who commutes to work in a pickup, are a selfish person.

Grid Stabilization

In the Solar and Wind articles, we read that these technologies produce intermittent power. In other words, they can't provide power on demand or at night. Imagine, if you will, that those 120,000,000 commuters all had electric cars. And that they all had excess batter capacity. They could charge up while the wind was blowing and the sun was shining, and discharge while the sun was sleeping and while the wind was lazy. Suddenly part of the problem with wind and solar has some help. This is a huge topic, though, and I won't go farther into it.

Shortest version:

Get an electric car for your commute.

Hokay, that is all for now. I will edit this as I get comments. Thanks for reading!

Jason Munster

Other Alternatives

Posted on by
Reply

Here we will cover a few more electricity producing alternatives, specifically geothermal in its different flavors, and the waste of money that is tidal power. Before that, let's make a quick roadmap of what we have covered, where that is going, and what we haven't yet covered.

Pretty much, we have talked about electricity producing resources. We have only briefly touched on energy as a whole. In the US, for example, 35% of all energy use is petroleum for transportation. None of the stuff we have discussed is useful to replace that without better battery technology. Nonetheless, it is likely that at some point in the next century, much of our domestic energy needs, including transport, will be covered by electricity. And we will require a lot more of it. An upcoming post will assess all the different tech for producing energy we have discussed, and which ones can be potential solutions.

Geothermal

Geothermal energy exists because it gets hot underground. In general, the temperature of the Earth rises by 30 degrees C for every km you go underground. This temperature increase in depth is called the geothermal gradient. If you go 7km underground, you are pretty much guaranteed temperatures of higher than 200 degrees C. Which, as we all know, is hot enough to boil water. 7km underground is pretty deep, however. In some places, the underground is much hotter. The temperature rises much more rapidly. It could be due to volcanic activity in the area, or radioactive decay underground. Either way, when hot temperatures are closer to the surface, that heat can be harnessed to drive a turbine.

Map of the geothermal resources available in the US. In general, this represents areas of higher temperature gradients.

Geothermal comes in two main flavors. One directly harnesses the steam from the ground to produce electricity (called flash steam, cause the pressurized hot water comes out, flashes to steam at atmospheric pressure, and drives a turbine), the other uses a heat-transfer mechanism where pressurized hot water from the subsurface (it needs to be pressurized, because it is above the boiling point of water at atmospheric pressure) is run through a set of heat-exchanging pipes before being put back underground. There is a third type discussed later in the article called hot dry rock.

Surprisingly, the first mechanism of directly using steam, in practice, is unsustainable and produces pollution. This is because the used steam is often vented to the atmosphere. The steam produced underground has pollutants. Like CO2 and sulfur, amongst other things. If the steam is used directly in a turbine and then expelled to the atmosphere, these pollutants come with it. If the used steam is instead re-injected into the formation, this problem is avoided.

Reinjecting the steam is easier and more common in the heat-exchange mechanism. The super heated stream of steam from underground is already isolated, and re-injection is pretty simple.

And here comes the fun part. If the steam is used and then vented rather than reinjected, the formation will run out of water. Instead of being a renewable resource, the geothermal will be a depletable resource that will only last for 10 or 20 years. This is because the pressure of the formation will drop, and the steam will no longer be able to rise. Does this sound familiar? Oil and gas production need to do this all the time to get maximum recovery rates. Reinjection of fluids is rather easy, and has been pretty well developed by the oil and gas industry.

Hot Dry Rock

The next major innovation takes a cue from the oil and gas industry. Hot dry rock is exactly what it sounds like. The rock starts off hot and dry. It has plenty of heat in it, but there is no steam or water to produce and then make energy from. How is this dealt with? Hydrofracking and injection. A well is drilled, the drill hole goes horizontal, it is fracked to drastically increase the surface area that the well hole can be exposed to, and water is injected into the rock. The water heats up a lot, then it is produced via a separate well to make steam. It is fairly complicated, and costs a lot more.

EGS

EGS stands for enhanced geothermal systems. You will run across this term a lot these days. It more or less means that the heat in the field is managed by either fracking beforehand, injecting water afterwards to maintain pressure in the field and extend the life of the geothermal power plant, or a combination of both. It drastically increases the lifetime and viability of a geothermal site.

Cost

The capital costs of geothermal pretty much will dictate the average cost of electricity produced. It looks like flashed steam will cost the least. In reality, unless the steam is reinjected afterwards, the field won't last as long, and the capital investment costs will have to be paid out over a shorter period of time, resulting in higher costs. Hot dry rock will undoubtedly always remain more expensive because of the costs associated with fracking and reinjection.

Footprint and other

Most of our power plants produce heat above ground, and need storage for either spent nuclear fuel or a coal pile (except for gas plants. They just need pipelines). So geothermal power plants don't take up a ton of space

fun uses of geothermal: geothermal heat is produced and used in Iceland to melt snow on the roads and such.

Tidal

I tend to think that tidal power sucks. In part because it is very expensive, and in part because at best it could provide all of 1% of world electricity.

Tidal power has two main problems: it uses salt water and it has only a few areas that it will work. There needs to be tides of sufficient strength that it can produce electricity, and even then, salt water is corrosive, limiting the lifetime of these power plants and making the levelized capital cost very high.

Tidal power also comes in two main flavors. One is tidal impoundment. Think of it as creating a hydroelectric dam every time the tide goes out. The tide comes in, fills up the area behind the impoundment dam, and then as the tide goes out, the area behind the impoundment dam is filled, and as it flows out, it generates electricity. As you recall from the hydropower article, the energy produced from a hydro dam directly relates to its height. The height of a tidal impoundment dam is limited by the height of the tide. In most parts of the world, this is not very high, so it is not very efficient. Moreover, it kinda messes with natural habitats.

The other type of tidal power is more or less an underwater wind turbine. The problem is that all the moving parts are underwater in the ocean. Where decay and breakdown happens quickly. Moreover, looking at the equation of energy produced via such a turbine:

where A is area, and v is velocity,

we quickly realize that the area of the rotor for a tidal turbine is small (wind turbines have 40m blades, and we aren't gonna have 80m of water depth in most places to replicate that scale in tidal areas), and the speed is slower (water doesn't flow at 6-8m/s very often). Tidal power can't scale and produce as much energy as wind. And the environment is unfavorable. In short, this is not a viable resource for large-scale energy production. And it costs a lot.

Hokay, that is all for today! Thanks for reading!

-Jason Munster



Solar 2

Posted on by
Reply

Photovoltaic solar cells. Solar PV.

This is not an easy thing to describe. For some, you may want to just skip past the technical section, cause it is pretty technical.

Solar PV: they used to take as much electricity to make as they produced in their lifetime. Now they they produce about 5x as much energy as they take to make, and the time to break-even on emissions compared to our cleanest fossil fuel stations is about 6 years (see Kannan, 2005, Lifecycle Assessment Study of Solar PV). Of all the clean technologies (nuclear power excluded), this is the only one with the potential to supply world energy needs (that is the subject of a later post).

In other words, when you hear some fool saying that solar panels take as much energy to manufacture as they ever produce, they are referring to a specific type of solar cells called thin film. A type that was made in the 70s and 80s and only goes into things like calculators. Feel free to ask them to stop being foolish.

Some Math

The light we see is not a homogenous single color. In fact, the light we see is not even all the light that is coming from the sun. Infrared and UV rays are also light, but we cannot see them at all. All this light is just an electromagnetic wave. The waves have different wavelengths, but the same speed, and so all the different wavelengths travel together. What we see is a blend of a tiny part of the electromagnetic spectrum.

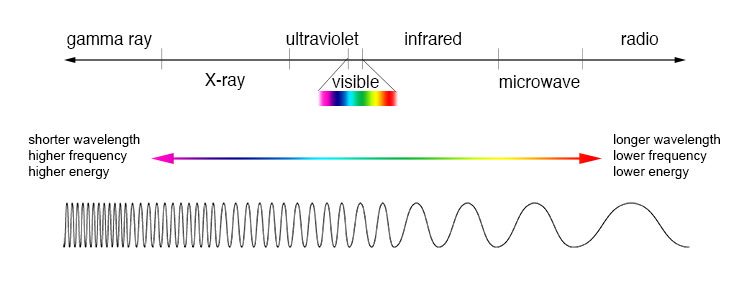

This is the electromagnetic spectrum. Visible light, what we can see, is only a small part of it.

This is the electromagnetic spectrum. Visible light, what we can see, is only a small part of it.

The amount of energy contained in a photon is equal to

where is the wavelength. h and c are Planck's constant and the speed of light, respectively.

Smaller (shorter) wavelengths give more energy. This is easily shown just by plugging a smaller number into the denominator. Stuff in the infrared is long wavelength, and stuff in UV, X-ray, Gamma ray, etc, are really short wavelength.

Technical Stuff

There is no easy way to do this. I am going to use some terminology that most of you all are unfamiliar with.

A Photo Voltaic (PV) solar panel is a sandwich of two materials. The materials are largely the same, with a few key differences. Both are likely made of silicon (processed sand). But each one has very specific impurities put into them, in a process called doping (not the same type that Lance Armstrong does). This doping is incredibly technical, and very skilled chemists are paid a ton of money to figure out how to do it.

Doping

I won't get into specific materials. Some elements cause there to be a shortage of electrons, or a electron hole, in the whole material (p-type semiconductor). Other elements cause an excess of electrons (n-type semiconductor). So you have one material that can accept electrons, and another material that can give electrons. Putting them together (literally stacking them together) makes magic happen. And by magic, I mean quantum mechanics. Which to most people, including many who study it, is no different than magic.

Just because one has more electrons doesn't mean it wants to be nice and share them. The electron in the n-type literally needs to be excited to be shared. And in PVs, what turns the n-type material on is sunlight. More specifically, photons. Photons are particles of light. ("But Jason!" you say, "Isn't light, like, a wave?" to which I say, "It is both a wave and a particle! Please don't ask me why, just accept it.") Photons contain energy based on their wavelength. Shorter wavelength, more energy (see above).

Here's the fun part. It takes energy to make the n-type semiconductor want to party with the p-type semiconductor. There is a threshold level of energy that needs to be met to kick that electron up from the n-type to the p-type. Too little energy, and the photon doesn't get excited enough to go to the electricity-production party. If there is enough energy from the particular wavelength of light to make that electron jump, then is does jump.

But what if there is more than enough? This threshold level is pretty much determined. Any extra energy will be wasted. This is why PV cells are not particularly efficient. There is a huge amount of light that is too low-energy (all of infrared) for the cell to gather any energy from. There is a lot of light that has much higher energy than required to meet the threshold energy as well. The excess energy is wasted as heat. This can be solved by having a multiple junction cell (multiple junctions just means it has a bunch of different width absorption gaps, so it can harness tons of different energy levels in light). It is capable of absorbing more wavelengths of light, increasing efficiency. And since it has multiple junctions, it is also more expensive and complicated to produce.

Hokay, so, what happens next? You have an electron that has jumped the gap. Then you close the circuit by connecting them with a wire. The electron will go home, back to the n-type, and create an electric charge on its way down. That's about it.

New Methods

Transistors are expensive. Normal glass optics are relatively cheap. The transistors absorb about 20% of the light that hits them. So it would make sense to use cheap optics to focus more light on the transistors and make the transistors small, yes?

One problem with these cells is how warm they get. If they warm up too much, they begin to lose efficiency. Here we see that we have a tradeoff. We want more optics and fewer cells, but if we do this, they get too warm. They stop being efficient. Some scientists and engineers are working on increasing the efficiency of the cells instead, to get more electricity from light. Otherwise, there are clever ways that some mechanical engineers are trying to get around these issues. One new design uses focusing mirrors and liquid cooling to get around this issue.

The pertinent stuff

Everything pertinent, like insolation and weather, was in the last solar article.

Next post: rounding up some of the stray power sources: tidal, geothermal, wave, and then I am pretty much done.

Thanks for reading.

-Jason Munster
